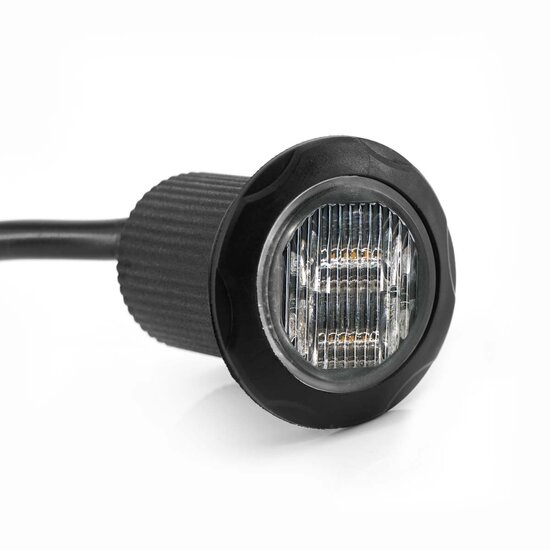

LEDSON - LED FLASH LIGHT - HIDE AWAY - ECE R65 - ORANGE

"Hide-Away" (for recessed installation) LED strobe/flash light.

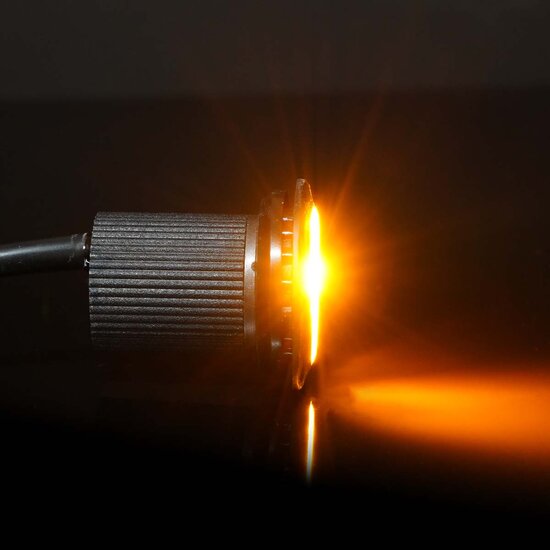

An extremely bright and clear light is obtained.

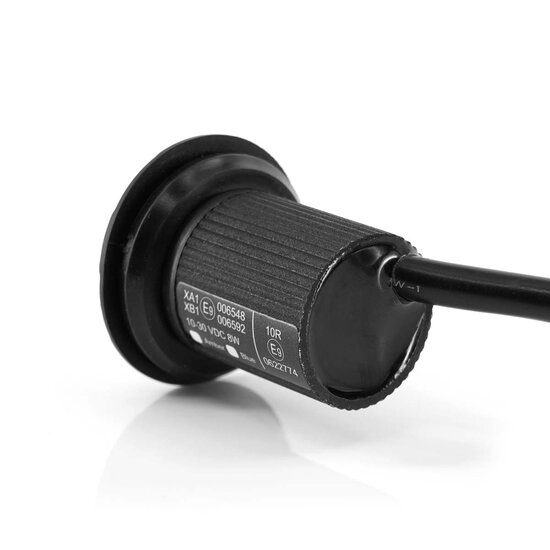

The lamp is R65 approved and is allowed to be used on public roads.

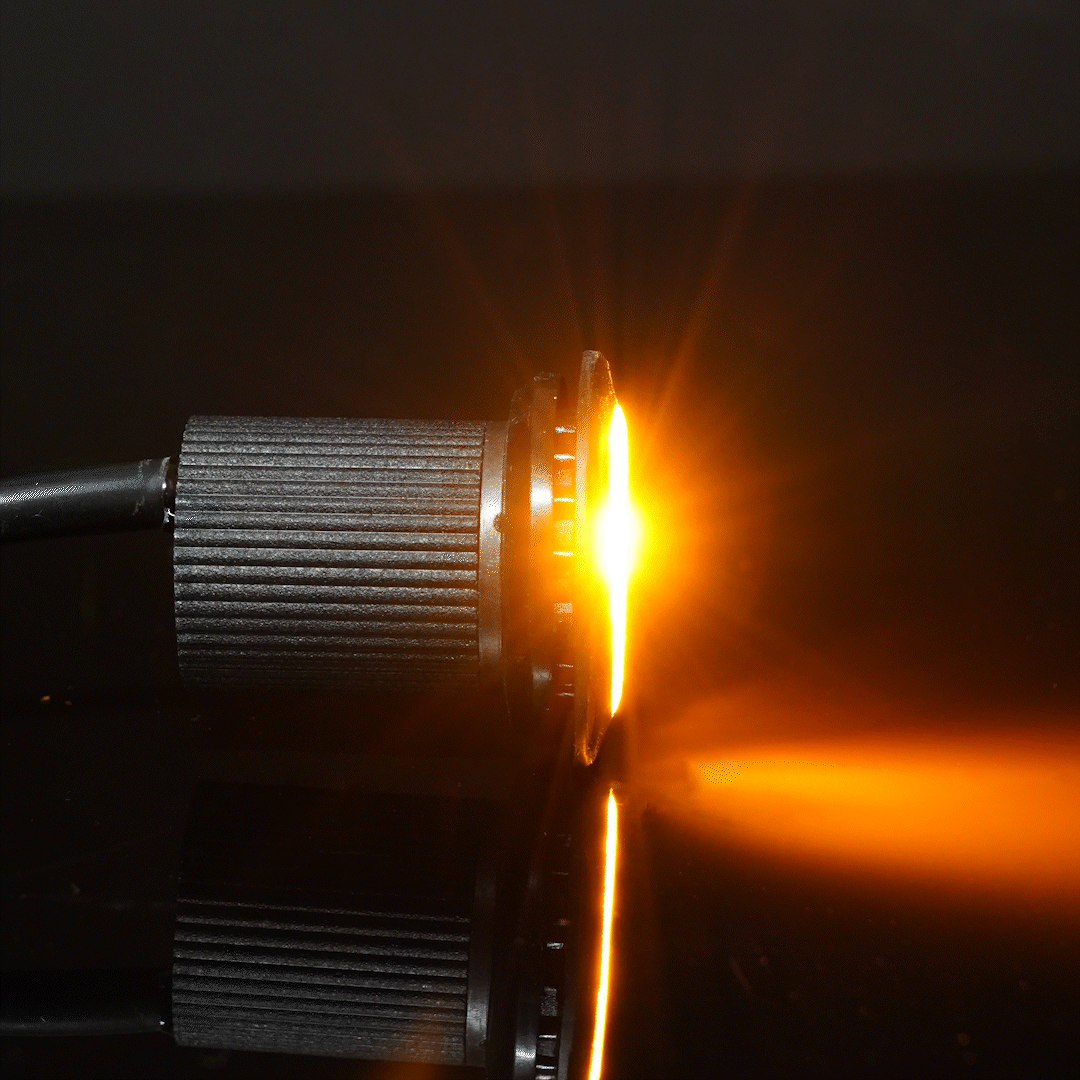

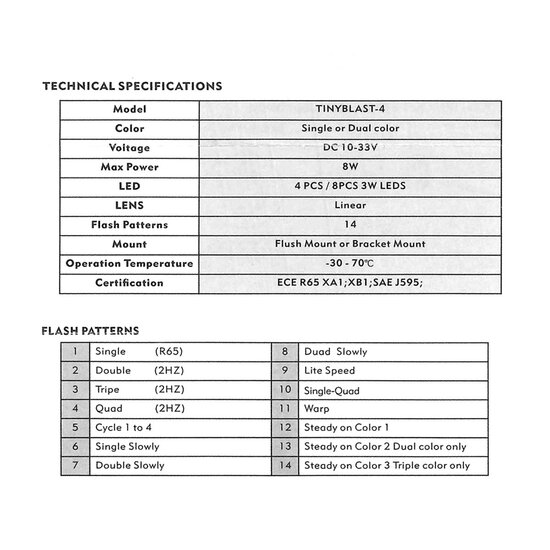

The light has 14 different flash patterns and the lamps can be divided into 2 different groups so that they flash alternately (e.g. right/left or upper/lower).
The flash light has a built-in memory function which allows it to automatically select the flash pattern that was last used.

- A detailed manual with accompanying installation instructions is included.

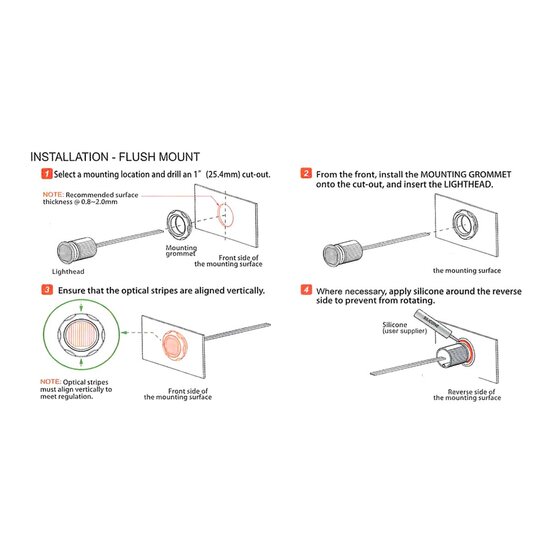

The Strobe lamp is mounted in a 25.4 mm hole (1 inch) using the supplied rubber gasket. The rubber seal is first pressed into the hole, then the lamp is pressed and snapped into place. The mounting depth is 40 mm.

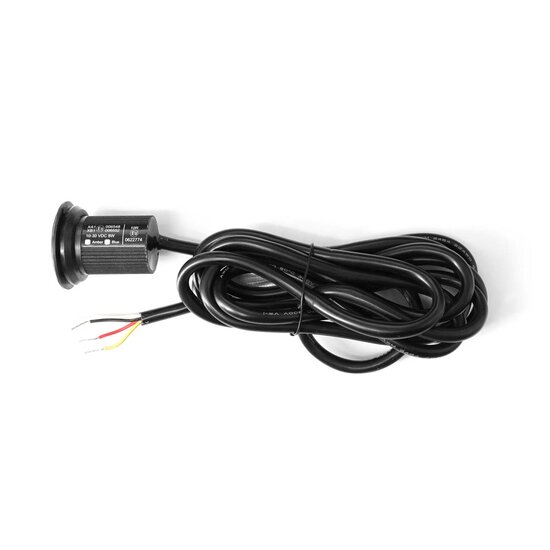

Red = Plus (12V-24V)
Black = Minus / Earth
Yellow = Synchronisation, flash pattern and grouping
White = Alternating / alternating flash patterns

Grouping
When you connect both red and yellow to plus at the same time, the grouping setting starts. The lamp flashes once or twice to show the set grouping. You can change the group by connecting the yellow wire to the plus. As soon as you switch off the light, it remembers that setting.

Dimensions:

Diameter (top, incl. gasket): 36 mm
Diameter for hole size: 25,4 mm
Total length: 38 mm
Mounting depth: 45 mm (incl. space for cable)
Cable length: 2 metres
