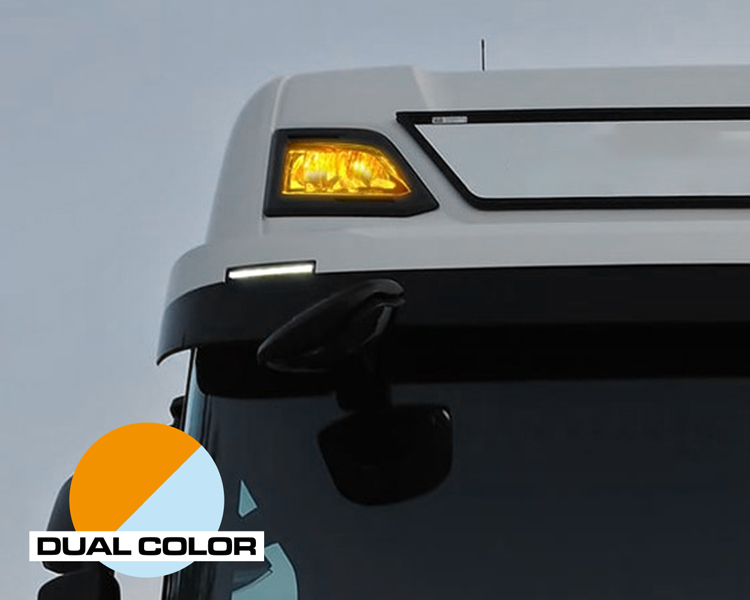

DUAL COLOR - LED ORANGE/WHITE POSITION LIGHT SKYLIGHT - SUITABLE FOR SCANIA +2016

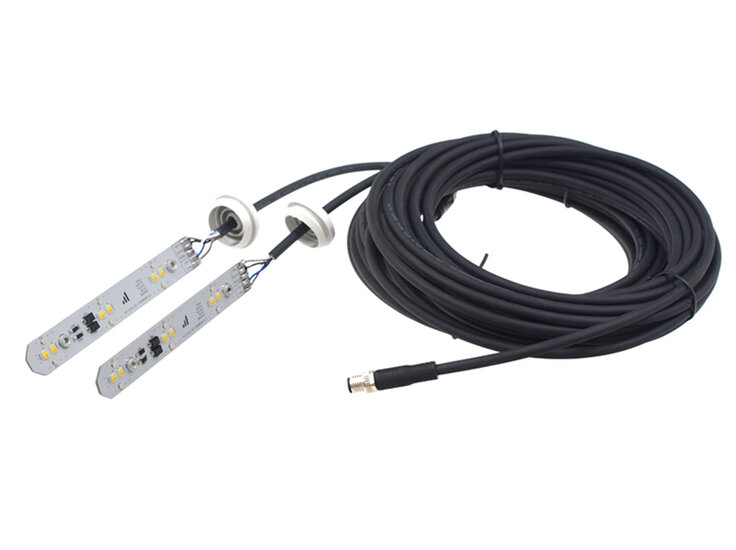

LED emitters specifically developed for the Scania +2016 Skylights.

There is one minus and two plus-wires.
!! Never have both colors turned on . You need to use a toggle switch to change between the colors.

Mounting
Installing into the lamps is relatively easy
- The lamps have to be removed from the frames they are mounted in.
- Use the included drilling template on the bottom of the lamp
- Drill a 20mm hole and two 3.5mm holes.
- Make sure to remove any debris from the drilling.

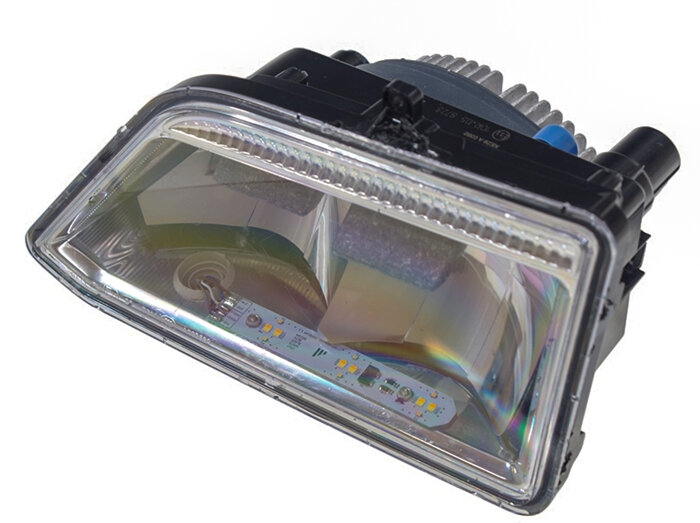

- The LED-circuit board is put in to the lamp through the large hole.
- On the LED-circuit board, there is two solder-nuts, that is used for fastening the LED-circuit board, through the two small holes with the included M3 bolts.
- Make sure to add glue to the head of the bolts, to avoid water ingress.

Push up the rubber gasket, so that it is secured in the hole. It can be a benefit to put silicone grease in the gasket, to avoid water ingress.
