AMBER - EXTRA POSITION LIGHT - SCANIA LED HEADLIGHT 2016+

Special emitter develop for Scania +2016 with LED headlights.

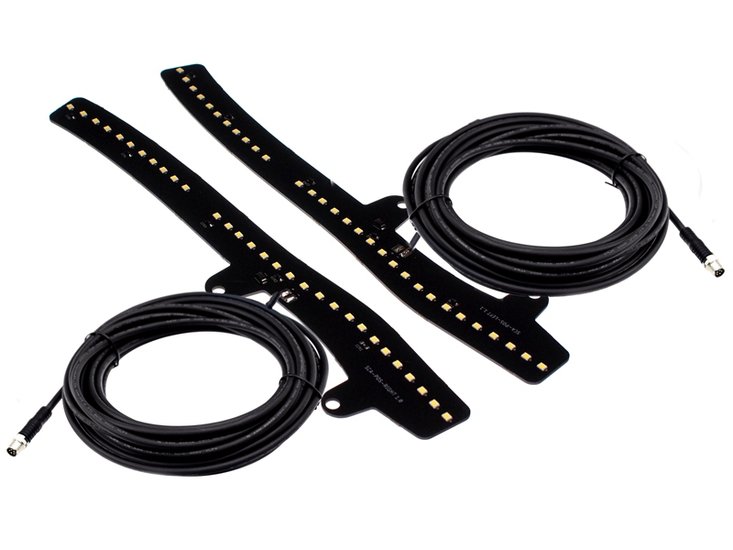

30 bright LEDs completely lights up the headlamp reflector, which creates a very special and stylish effect. Next to that it has a flash function which creates safety on the road.

There is 3 meter wire on each emitter, that can be connected to the regular position light. There is a plus and minus wire.

Mounting the emitters is easy but if you are not sure please consult a professional.
The only permanent change in the headlight is a single hole, that is easily closed again. The emitters are mounted inside the headlight, and fastened with two existing screws.

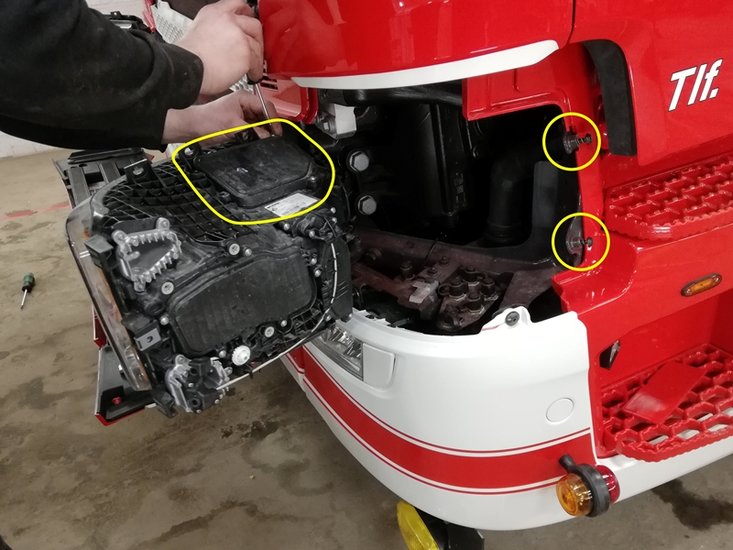

- There are two screws near the doors, that hold the headlights in place. They are loosened, where after the headlight can be swung to the side.

- On top of the headlight is a large cap, that can be loosened and removed. Under the cap is a large heatsink.

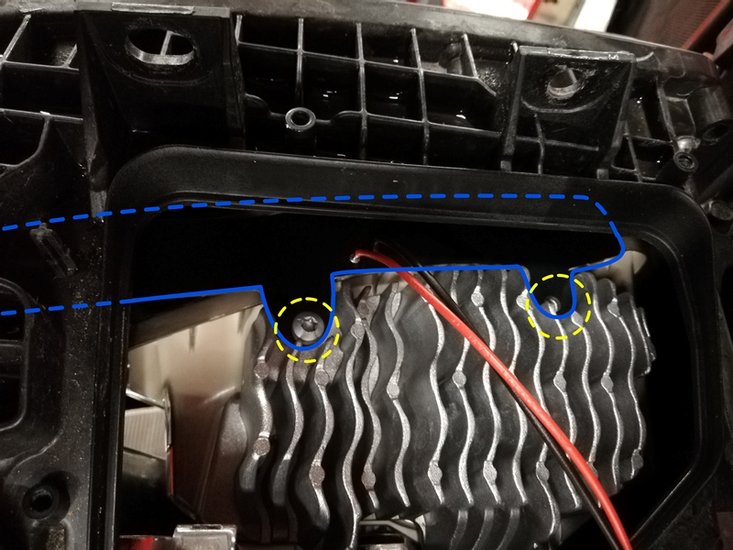

- The two front screws on the heatsink are loosened and removed.

- Push the emitter sideways in to the headlight so that the two taps fits the holes in the heatsink. It is important that the emitter is placed above the reflector. You should not be able to see the emitter inside the headlight when it is mounted.

- The two screws is fastened through the emitters in to the heatsinks.

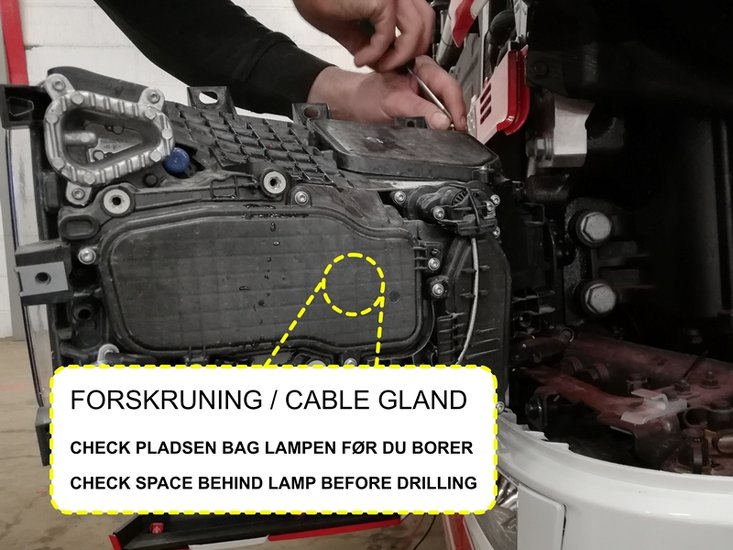

- We recommend that you drill a hole in the back plate of the light for feeding through the wire.
