Easily and quickly control up to 8 switches via a stylish display and via the app!
Not only switching on/off but also with an adjustable flash function and unlimited background colors of the operating display.
Pretty easy installation. No complicated wiring, no big holes in the dashboard.

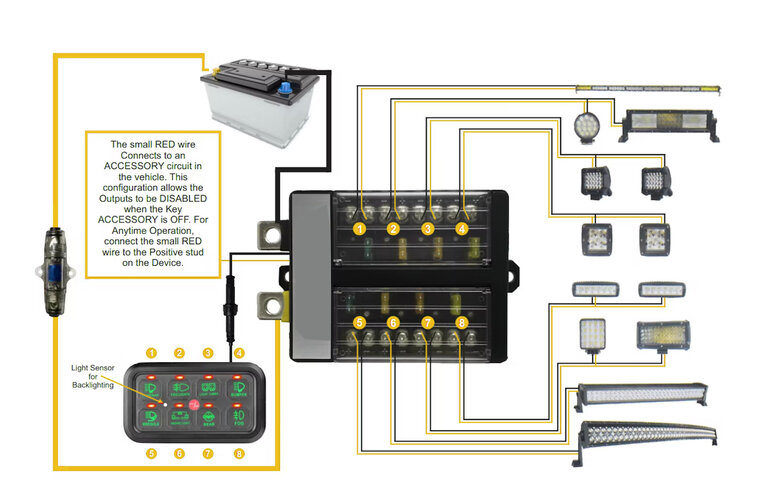

Connecting to the relay box is easy with the Plug & Play wiring harness.
With a choice of two types of mounting brackets, the display can be installed almost anywhere.
Control via Smart Switch App (Android / IOS)
- Control panel via Bluetooth

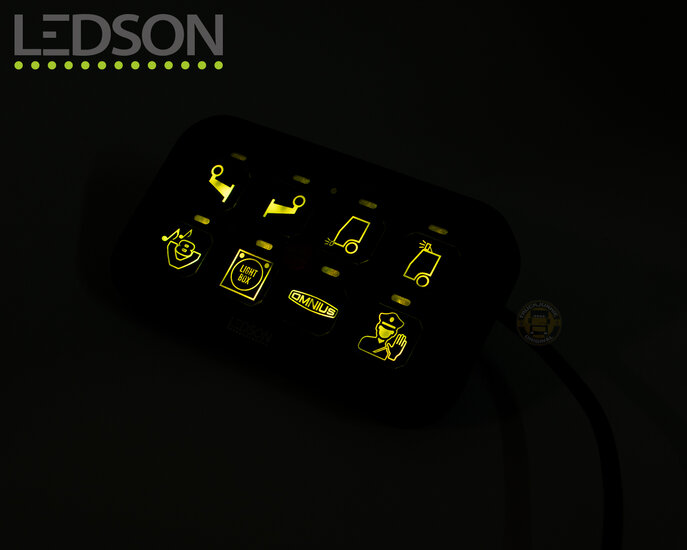

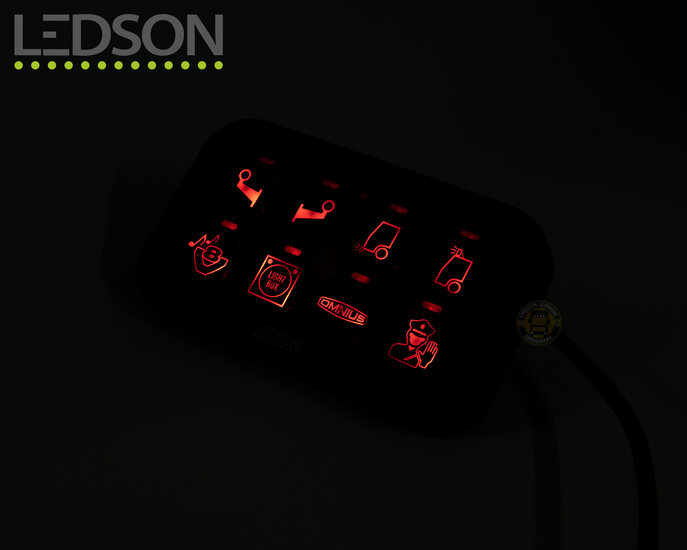

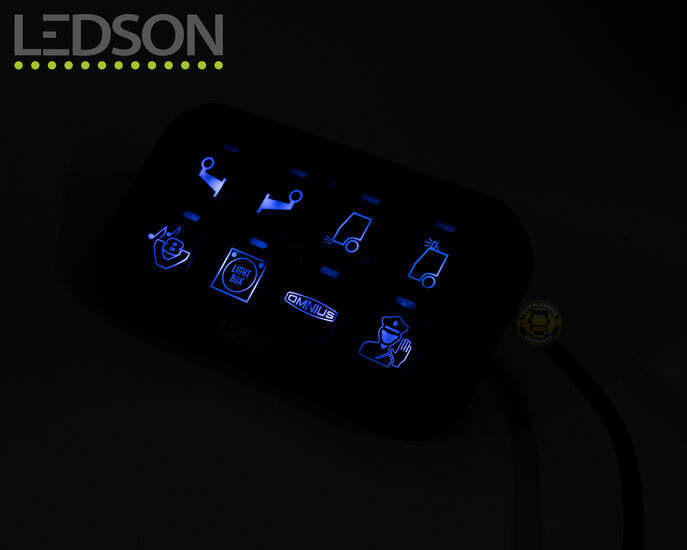

- Unlimited display backlight color customization
- Adjust the brightness of the backlight
- Turn lights on and off via the app
- Customize Mode Settings
- Adjust group settings (2 or more lamps can be controlled at the same time)
-
Bluetooth connection requirements: Android 4.5 and above or IOS 9.0 or above
- Inside the box is the QR sticker with which to download the app
3 different mode settings
- Toggle : Constantly on – press the button again to switch off
- Momentary : Keep the button pressed to turn on, release the button to turn off
- Pulsed : Flash mode - to turn off, press the button again (speed of flash pattern can be set via the app)
Group setting
- Set up a group through the APP to control 2 or more lamps at the same time
We recommend that this product be installed by a certified technician.
Technical:
12-24V
Maximum current: 60A
Rated Voltage: 12V 20A / 24V 10A
12 volts: max. power of 720 W
24 volts: max. power of 1200 W
IP65 waterproof
8 different outputs and fuses
MosFet electronic relays
Direct input for high beam signal (halogen)
Protected against overheating, overload, short circuit and polarity protection

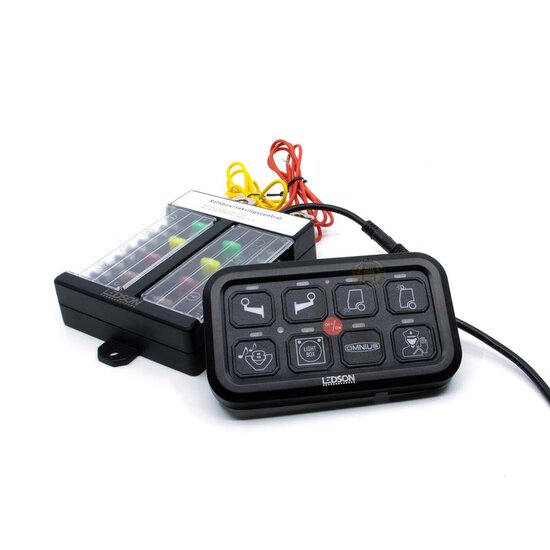

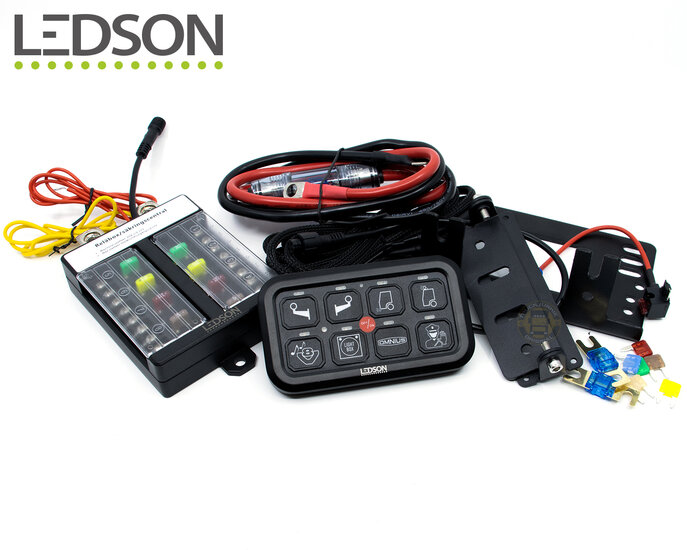

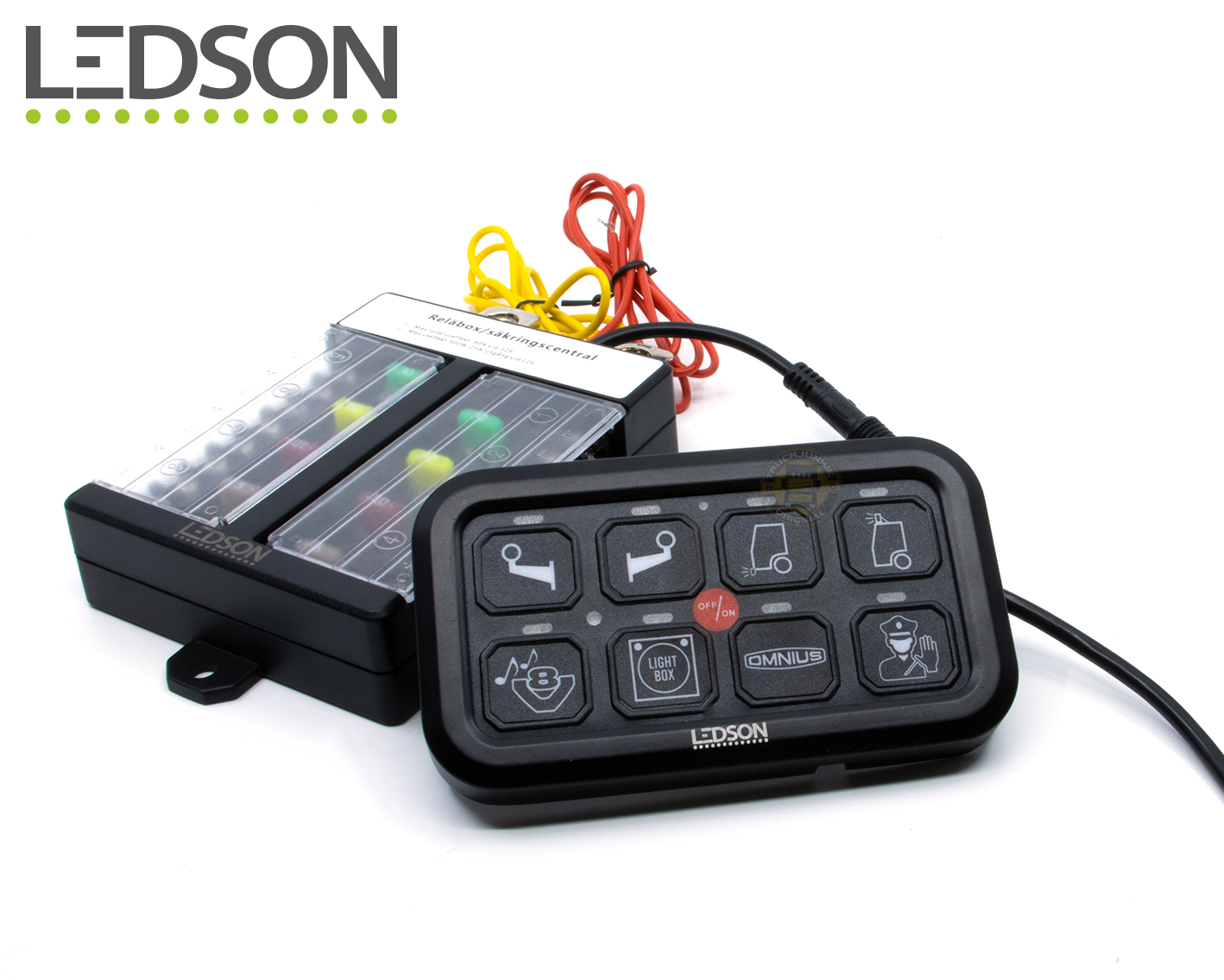

Included:
- Switch panel with remote control (via APP)
- Relay / fuse box
- 2.5 cable between switch panel and relay box
- Mounting brackets
- Wiring incl. fuses
- Additional fuses

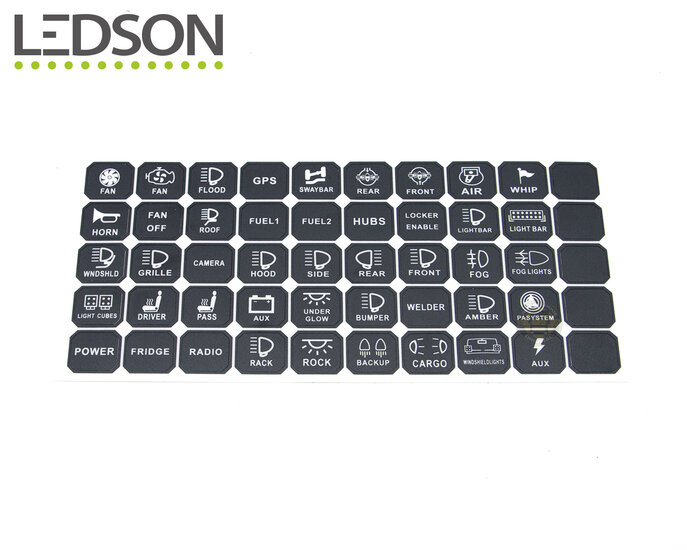

- 5O different symbols (extra Truckjunkie version to be purchased separately)
