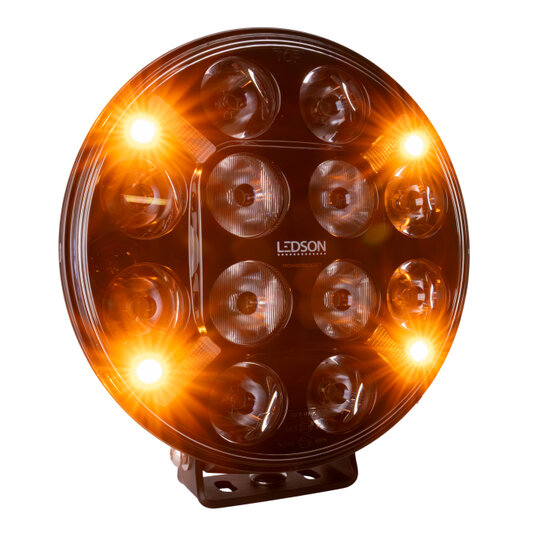

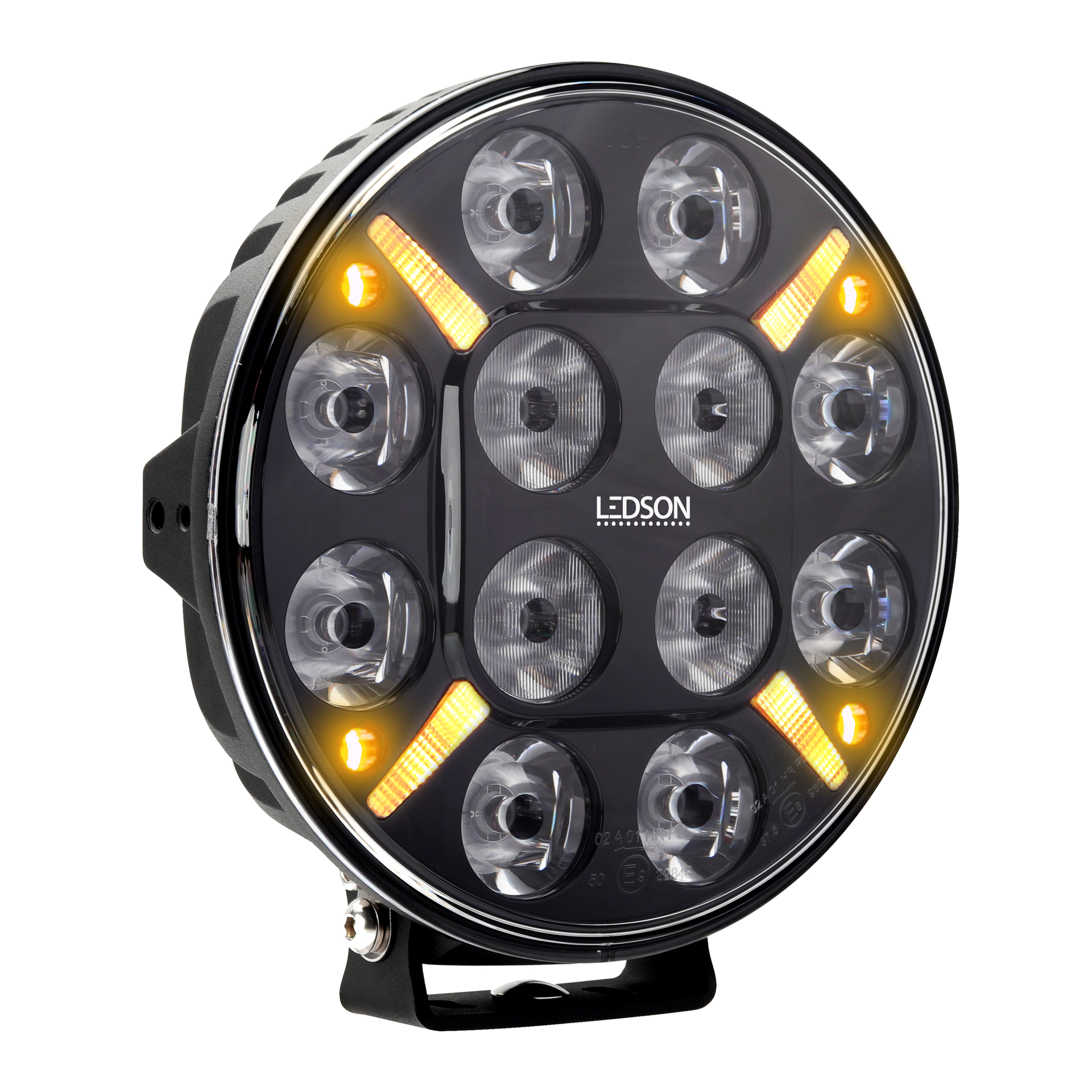

The Pollux9+ Strobe is a further development of Ledson's immensely popular Pollux9+ Gen 2. the Pollux9+ Strobe also has an ECE R65 approved strobe light. This stobe light consists of four powerful LEDs that can be set in five different flash patterns.
Flash patterns:
- Single flash (ECE R65)
- Double flash
- Triple flash
- Quadruple flash
- Continuous hyper flash
Synchronizable and with alternating flash pattern
Different Pollux9+ Strobe - lights can be synchronized with each other, which means that all of the lights use the same flash pattern and strobe synchronized. But you also have the option of an alternating flash pattern, which means that your lights can be divided into two different groups so that they strobe opposite of each other. You can synchronize and use alternating flash patterns with an infinite number of lights, i.e. there are no restrictions on the number of lights you use.
What's supllied?:
- Pollux9+ Strobe Ledson LED auxiliary light 9" with Driving Beam and strobe function

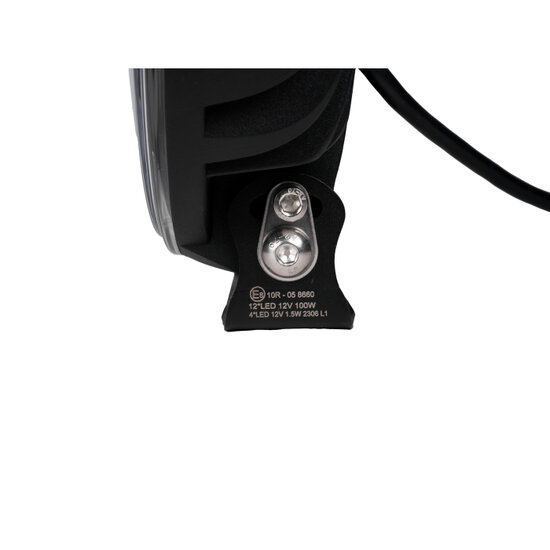

- Bolts and screws for attaching the light with either one or two attachment points
- DT connector (6 pole, supplied with 2 pole adapter)
- Installation instructions
Installation instructions for cables (detailed instructions included with the product):
- Red: Auxiliary light (+)
- Black: Auxiliary light/ Positionsljus (- ground)
- Grey: Position light (+) white light
- Yellow: Position light (+) orange light
- Green: Strobe light (+)
- Blue: Strobe light switch of pattern / synchronization
Strobe pattern synchronization: Connect the blue wires of two or more lights, then momentarily connect these to the positive terminal for 3 seconds to reset the strobe frequency on all connected lights, then all flash patterns are shifted.
NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
The Pollux9+ Strobe is of course already equipped with a durable lens, but if you really care about your extra light having a long life, free from stone chips and scratches, we recommend our stone chip protectors. A cheap and easy way to give your new auxiliary light an extra layer of protection!
TIR reflectors
TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out from the reflector. The spill light (the light that is not directed but which disappears "unfocused" from the light without making any real use) is minimized. A traditional reflector directs and focuses most of the light but far from everything.
Driving Beam light pattern
Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the truckss existing headlight and light image.
Installation:
- We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle.
Specifications:
- E marked (E8, ref. 37,5), ECE R112 / R10 / R7 (white position light)
- EMC secured (does not disturb the radio)

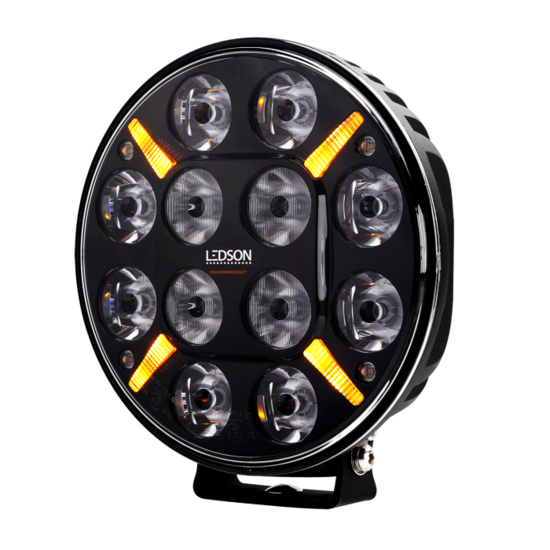

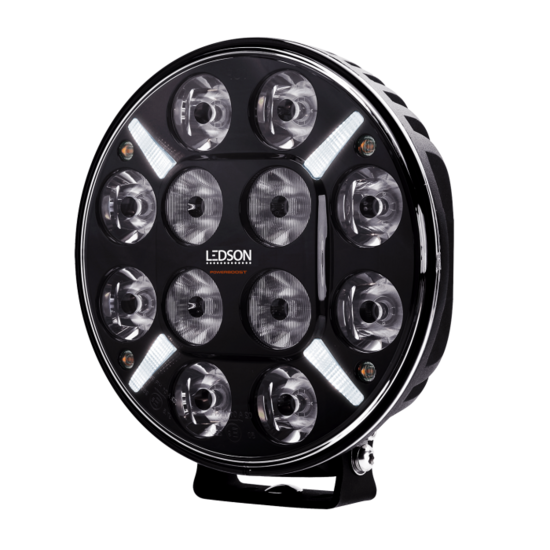

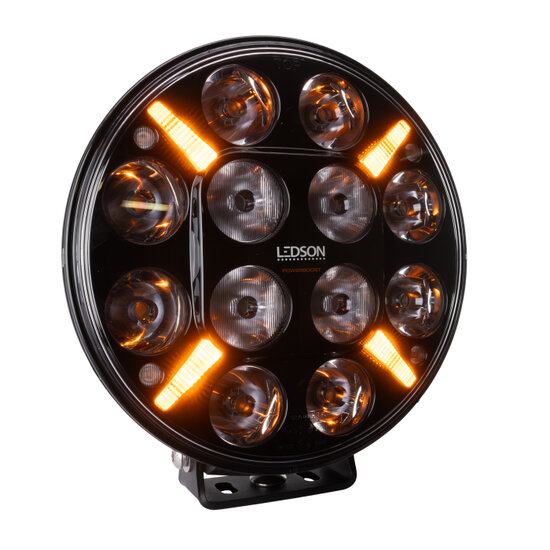

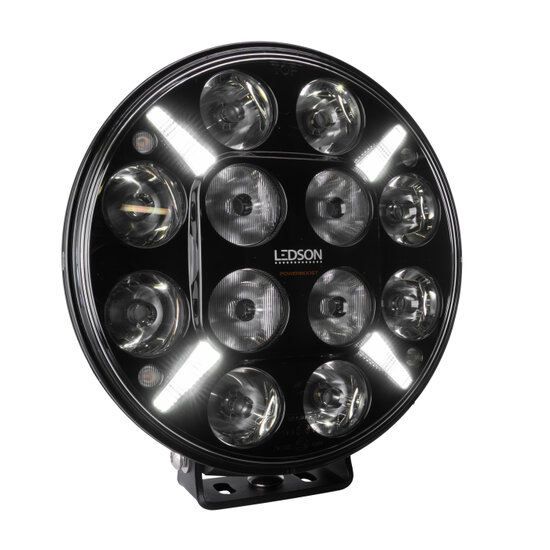

- With position light (4 LEDs) in orange or xenon white (connect the color you want)
- "Driving beam" light pattern
- Range Driving Beam: 960 m (0.25 lux), 480 m (1 lux)
- 12000 lumens (theoretical), 9600 lumens (actual)
- Cold White Light (6500 K)

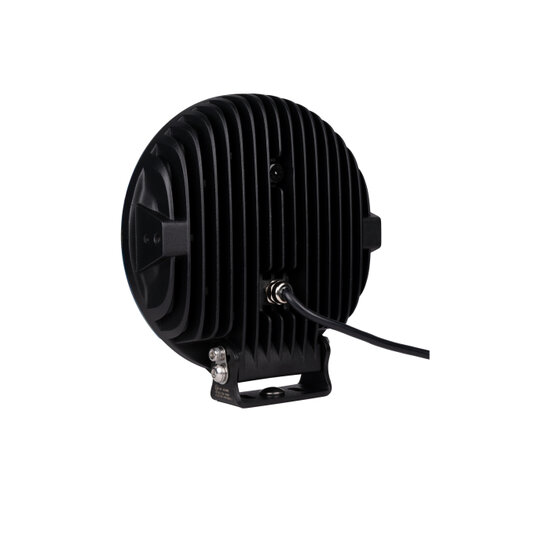

- Pressure equalization membrane
- 36 month warranty
Technical data:
- 120 W (12 x 10 W Cree XM-L2 LED)
- 4 pcs LED for strobe light
- Nominal power 92,4 W
- IP68 (water/dust proof)
- 6 pole DT connector (2-pin adapter included)
- Electronic heat management
- Voltage 9-36 V
- Load 7,7 A @ 12 V and 3,6 A @ 24 V
Measurements:
- Width: 218 mm
- Height: 234,5 mm (incl bracket)
- Depth: 68,5 mm
- Weight: 1,9 kg
- Cable length: 650 mm
What's supllied?:
- Pollux9+ Strobe Ledson LED auxiliary light 9" with Driving Beam and strobe function
- Bolts and screws for attaching the light with either one or two attachment points
- DT connector (6 pole, supplied with 2 pole adapter)
- Installation instructions
Installation instructions for cables (detailed instructions included with the product):
- Red: Auxiliary light (+)
- Black: Auxiliary light/ Positionsljus (- ground)
- Grey: Position light (+) white light
- Yellow: Position light (+) orange light
- Green: Strobe light (+)
- Blue: Strobe light switch of pattern / synchronization
Strobe pattern synchronization: Connect the blue wires of two or more lights, then momentarily connect these to the positive terminal for 3 seconds to reset the strobe frequency on all connected lights, then all flash patterns are shifted.
NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
