LEDSON Phoenix+ LED BAR 20" (52CM) - WITH STROBE FUNCTION

LEDSON Phoenix+ LED BAR 20" (52CM) - WITH STROBE FUNCTION
0 Reviews | Add review

Multifunctional Ledson bar met orange light strobe function and xenon white or orange position lights

Product number

33305215

Default delivery time

2-6 WORKING DAYS

€ 299,00 *
Price per unit



The number of Credit points granted for this product is 11
Quantity:
Order
Phoenix+ 20" (522 mm)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! Now you no longer have to think about mounting several extra lights and a strobe / warning light, you save space and get a simplified installation.


The bar is available in three different sizes (20", 32" and 40") and therefore fits every need. All lengths are E-approved as auxiliary lights according to ECE R112 and have approved strobelight (ECE R65). They are also equipped with xenon white or yellow / orange position lights, which is optional to connect.

Lot's of light and even more safety on the road!

Characteristics:

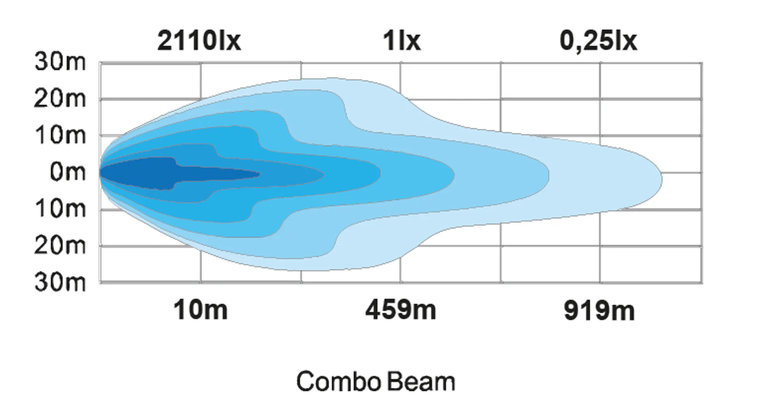

Combo Beam light image (wide and oblong)
E-marked ECE R112 (ref. 50)
ECE R65 / R7 / R10 (EMC-rated)
Range: 459 m (1 lux)
Lumen: 8820 lm (theoretical), 3586 lm (actual)
Color temperature 5700K (cold white)

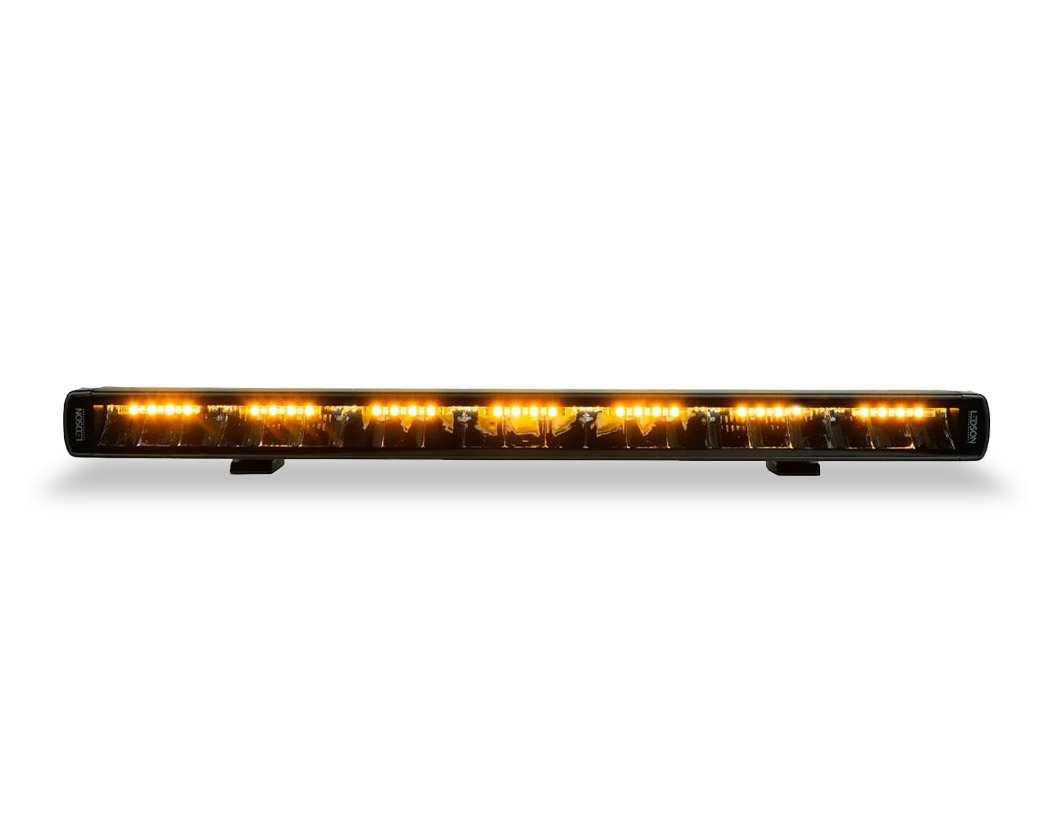

Strobelight: Orange (ECE R65)
Position light: Xenon white alt. yellow/orange

Technical data:
105 W (21 x OSRAM CSHP LED)
IP68/69K: withstands hot water under pressure - Read more about IP rating here
Aluminum housing and polycarbonate lens
4-pin DT connector (included)
Voltage: 10-30V

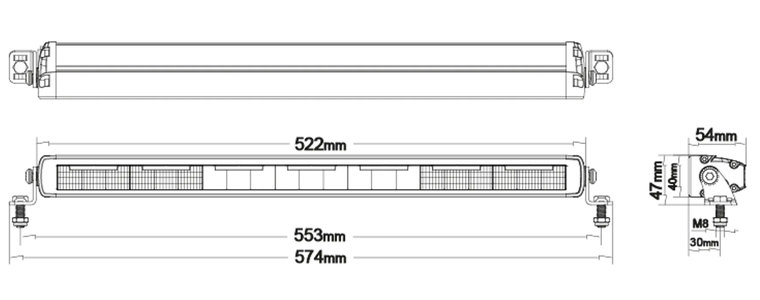

Dimensions & weight (excl. Brackets):
Width: 522 mm
Height: 40 mm
Depth: 54 mm (excl. Bracket)
Weight: 1300 grams

Cable colors:
Green: Flash function
Gray: White position light
Yellow: Orange position light

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.

Order by:

Add review

Review must be approved by an administrator before being posted.

No reviews found.

Weight
1.3kg
Manufacturer
Ledson
Light source
led
position light
white or orange
Number of diode
(21 x OSRAM CSHP LED)
Lenght
522mm
Voltage
10-30V
Warranty
24 months
E-mark
ECE R10, ECE R65, ECE R112
IP
IP68/69K
