With just over 3 cm (33 mm) in height, this led light bar is remarkably thin. At a distance it is barely visible but the closer you look, the more visible the bars distinctly aggressive and modern exterior becomes. This is a ledbar for those who want the latest, the thinnest, most unobtrusive, but that still fits nicely on the car and provides that attractive added value.
We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.

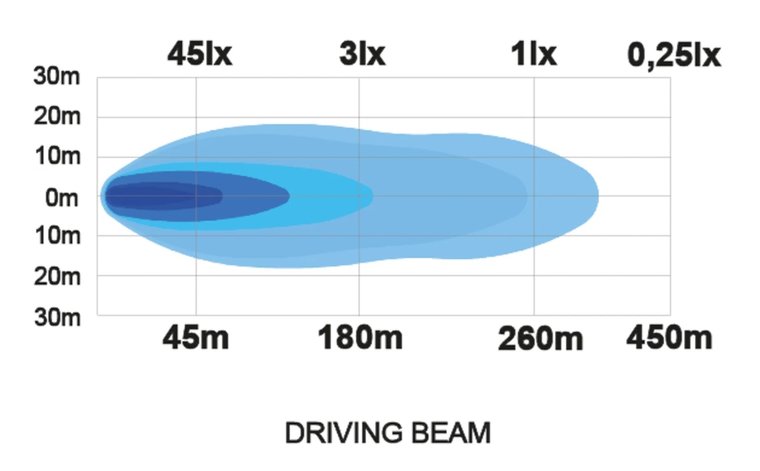

”Driving beam” light pattern (wide and elongated)
3780 lumen (raw), 2350 lumen (effective)
Color temperature 5700K (cool white)
Range 450 m (0,25 lux), 260 m (1 lux)

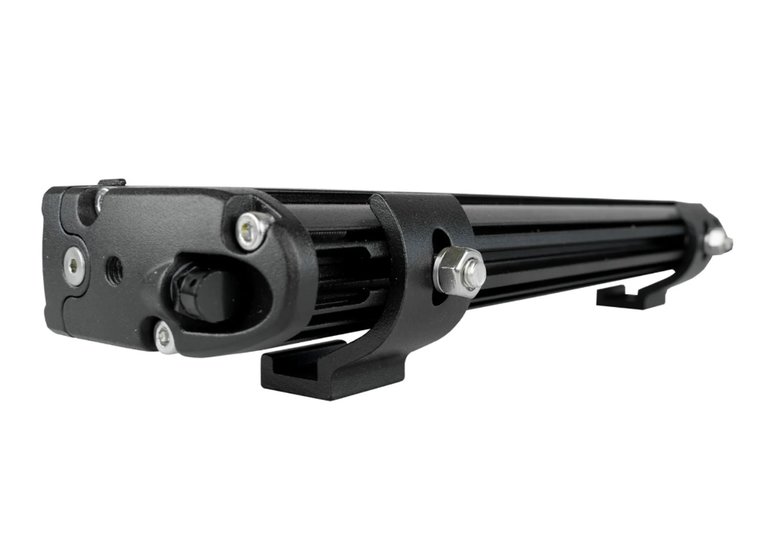

Two mounting options
45 W (9 x 5 W OSRAM LED)
IP67 / IP69K (water/dust proof)
Aluminum casing and polycarbonate lens
Voltage: 10-48 V
Width: 275 mm
Height: 33 mm (exkl fästen)
Depth: 68 mm
- Important ! :
The DT-connector must not be cut off since it increases the risk of water and/or damp damage. If the connector has been cut off the guarantee does no longer apply. DT-connector (male) with joint is included with the product.
